Wodel: a domain-specific language for model mutation

Wodel is a domain-specific language (DSL) for specifying and generating model mutants.

Wodel is independent of any particular modelling domain. It can generate mutants of models that conform to any metamodel.

Wodel provides nine mutation primitives, including object creation and deletion, reference redirection, attribute modification, cloning and retyping (changing an object's type to one of its sibling types).

For every generated mutant, the engine checks that the result is a valid model: it must conform to the domain metamodel and satisfy its integrity constraints.

Enhanced mutation features

Wodel can detect and avoid duplicate mutants. By default, equivalence is determined syntactically, although users can define their own criteria—for example, behavioural equivalence—through extension points.

When a Wodel program is executed, Wodel records the mutations applied and the model objects affected.

The IDE provides several metrics for assessing whether a mutation set is complete and correctly implemented.

The IDE can also synthesise seed models automatically, which supports the testing of Wodel programs.

The development environment is extensible and supports post-processors for different applications.

See the Wodel tutorial to begin using the language.

Current Wodel extensions

This repository contains three extensions to Wodel. The first, Wodel-EDU, automatically generates exercises for specific domains, such as automata, class diagrams and logic circuits.

The following Wodel program changes the target of a transition in a finite automaton model:

generate 2 mutants
in "data/out/"
from "data/model/"
metamodel "http://dfaAutomaton/1.0"

with commands {
     modify target tar from one Transition to other State
}

The second extension, Wodel-Test, automatically generates mutation-testing tools for modelling and programming languages.

The third extension, Wodel4diac, enables the mutation of IEC 61499 industrial automation applications authored in Eclipse 4diac. It supports the systematic generation of variants of function-block applications for purposes such as mutation testing, fault seeding, robustness analysis, and the automated generation of learning exercises for industrial-automation engineering.

How Wodel works

Wodel is used through a development environment integrated in the Eclipse IDE. The following steps summarise the typical workflow, from the creation of a Wodel project to the analysis of the generated mutants.

1. Create a Wodel project

Users begin by creating a new Wodel project via File → New → Other… → Wodel → New Wodel Project. A dedicated wizard guides the user through the creation process: after naming the project, the user introduces the domain meta-model, so that the Wodel engine can load it and constrain the space of applicable mutations.

Since Wodel is domain-independent, any Ecore meta-model can be selected at this point — finite automata, UML class diagrams, logic circuits, BPMN processes, security policies, and many others.

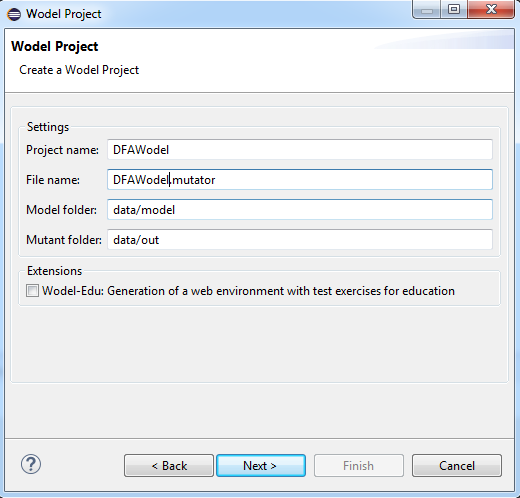

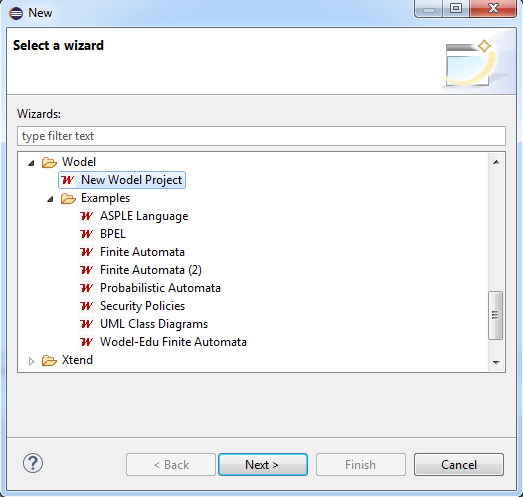

New Wodel Project wizard selection New Wodel Project: project naming

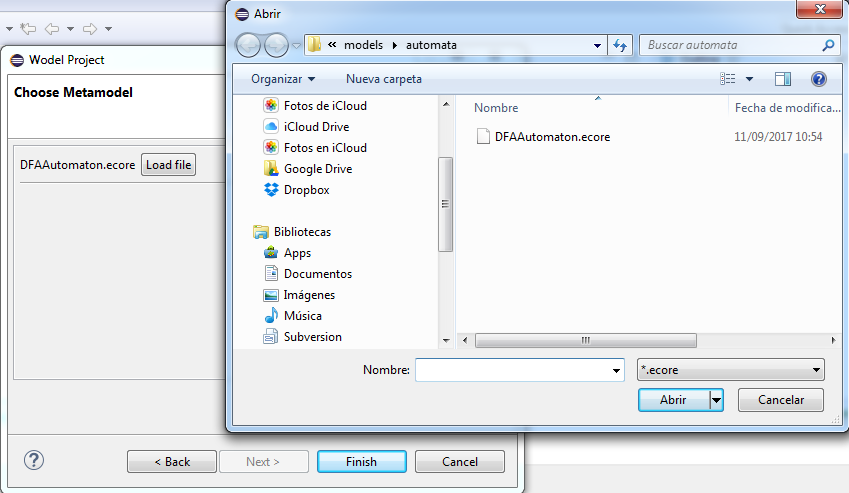

New Wodel Project: domain meta-model selection

New Wodel Project wizard. Top: selection of the project type and naming of the new project. Bottom: introduction of the domain meta-model that the Wodel engine will load.

2. Write the Wodel mutation program

A Wodel program describes the mutation operators of interest and their intended execution schedule. Operators are built from the nine mutation primitives of the language, can be organised into blocks, and can be complemented with OCL constraints that every generated mutant must satisfy, as illustrated in the previous sections.

The Wodel IDE is based on Xtext and assists the developer with syntax highlighting, code completion, and code validation, easing the mutation development process.

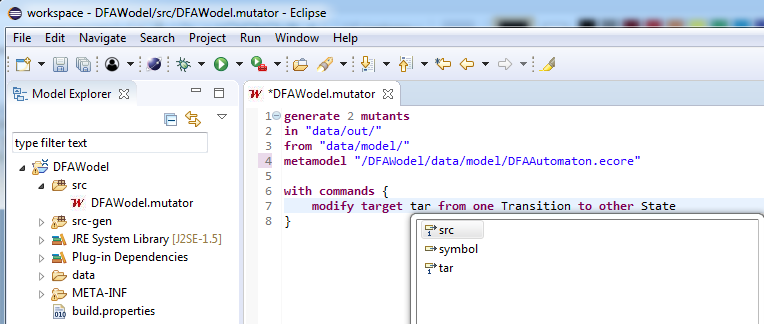

Wodel program development in the Xtext-based Wodel IDE

Development of a Wodel mutation program in the Wodel IDE. The Xtext-based editor provides syntax highlighting, code completion, and code validation.

3. Provide or synthesise the seed models

A Wodel program is executed over a set of seed models. Users can create their own seed models (instances of the domain meta-model), or automatically generate a battery of seed models with the seed model synthesiser provided by Wodel, which is useful to assess the validity of the mutation operators.

Seed models are synthesised by right-clicking on the .mutator file in the project explorer and selecting Wodel… → Generate seed models. The generated seed models are stored in the model folder of the project.

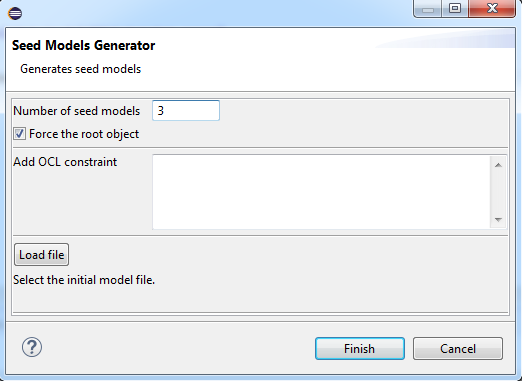

Seed model synthesis wizard

Seed model synthesis wizard. Wodel automatically generates a battery of seed models conforming to the domain meta-model, supporting the testing of the mutation operators.

4. Generate the mutants

Mutants are generated by right-clicking on the .mutator file in the project explorer and selecting Wodel… → Execute Mutations. The Wodel engine applies the mutation operators following the specified schedule, and checks that every generated mutant is a valid model: it must conform to the domain meta-model and satisfy its integrity constraints.

During this process, the engine detects and discards duplicate mutants, and records the applied mutations and the affected model objects in a registry that supports the subsequent analysis of the results.

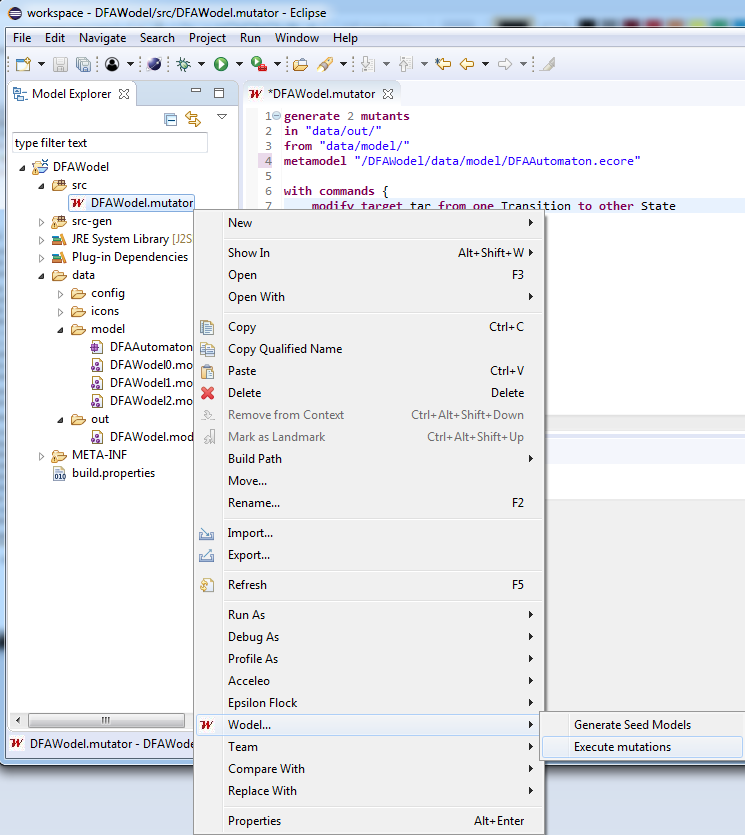

Mutant generation via the Wodel context menu

Mutant generation from the Eclipse project explorer. The Wodel… context menu gives access to mutant generation, seed model synthesis, and the other services of the framework.

5. Configure the Wodel preferences

The configurable features of Wodel are presented in three preferences pages — general, footprints, and seed model generation — accessible via Window → Preferences → Wodel.

The general preferences page allows activating the registry of applied mutations, selecting which extension is executed after the mutant generation, and configuring the maximum number of attempts performed to ensure that a mutant is unique, the maximum number of mutants generated by default, and the extension used to check mutant equivalence.

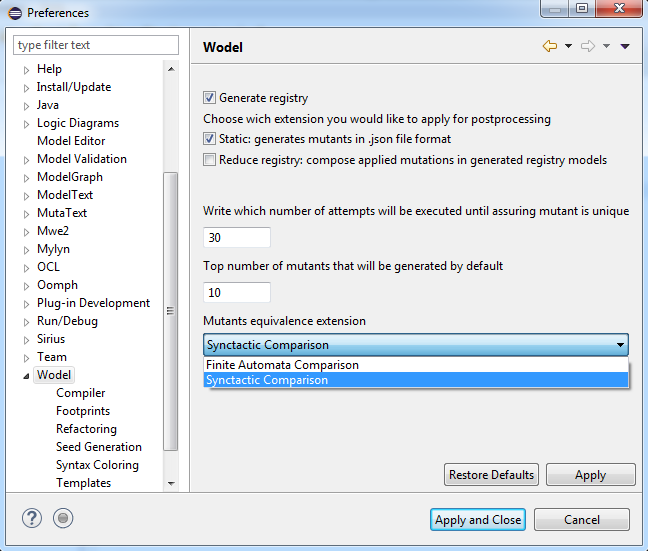

Wodel general preferences page

Wodel general preferences page. The user configures the mutation registry, the post-processing extension, the number of generation attempts, and the equivalence-checking extension.

6. Analyse the mutation footprints

Wodel provides several footprint views to assess whether a mutation set is complete and correctly implemented. Footprints are shown by right-clicking on the Wodel editor and selecting the desired view.

The static footprints are computed from the Wodel program. The meta-model static footprint shows which elements of the meta-model are affected by the mutations, distinguishing explicit creations (C), modifications (M) and deletions (D) from the implicit ones (IC, IM, ID) they induce. The operator static footprint presents the same information for each mutation operator separately, which helps check the static behaviour of each operator.

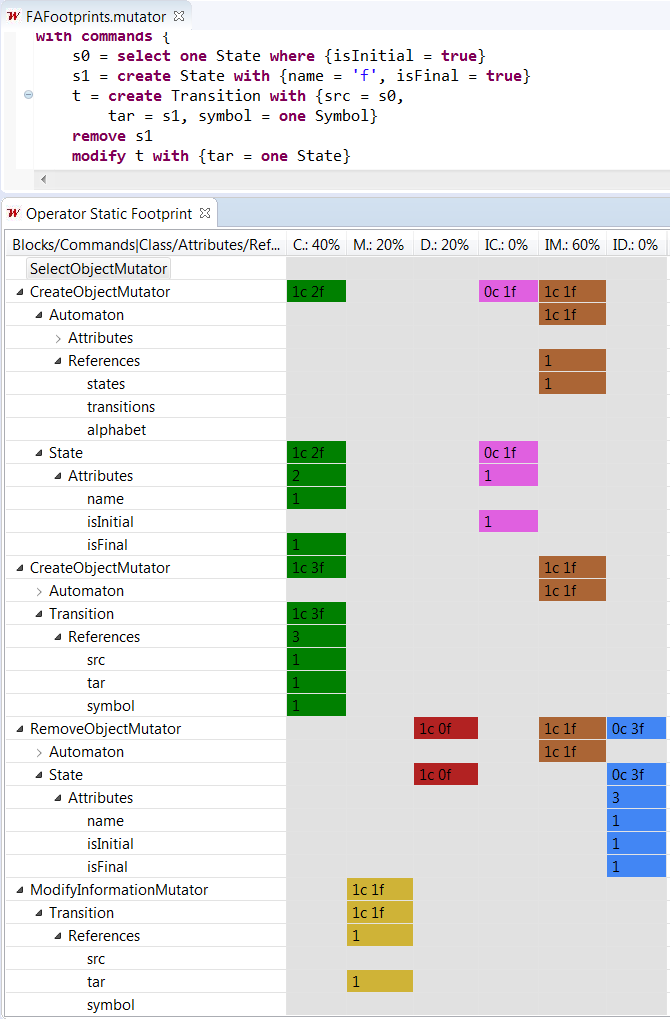

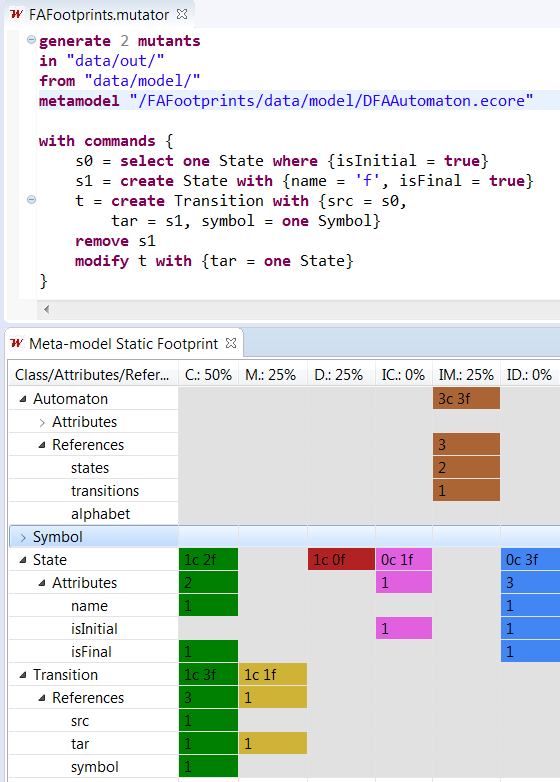

Meta-model static footprint view Operator static footprint view

Static footprints. Left: meta-model static footprint, showing the explicit and implicit effects of the program on each meta-model element. Right: operator static footprint, detailing the effects per mutation operator.

The dynamic footprints are computed from the generated mutants. The net dynamic footprint captures the net effect of the program execution, calculated by differencing each seed model and its mutants. The debug dynamic footprint provides a detailed enumeration of the applied operators, combining the variations observed in the mutants with the information stored in the registry of applied mutations.

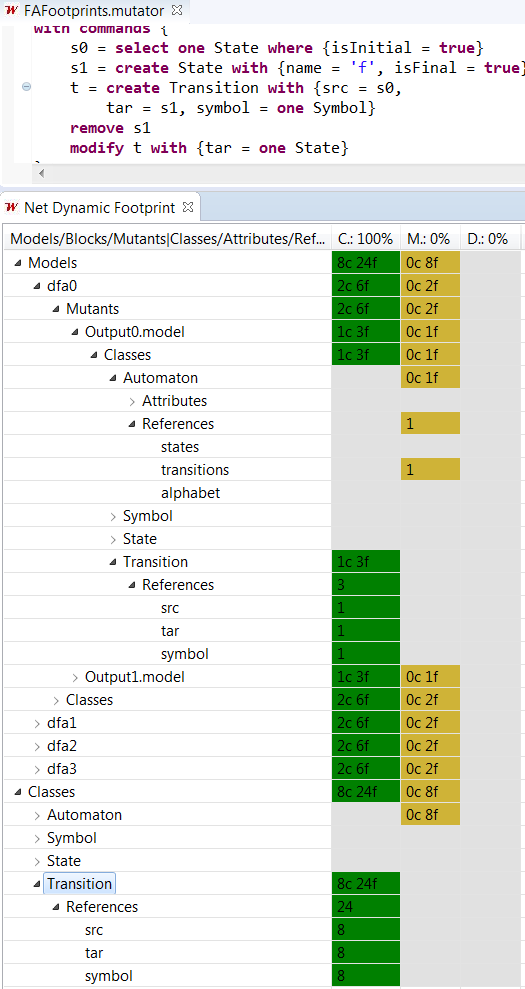

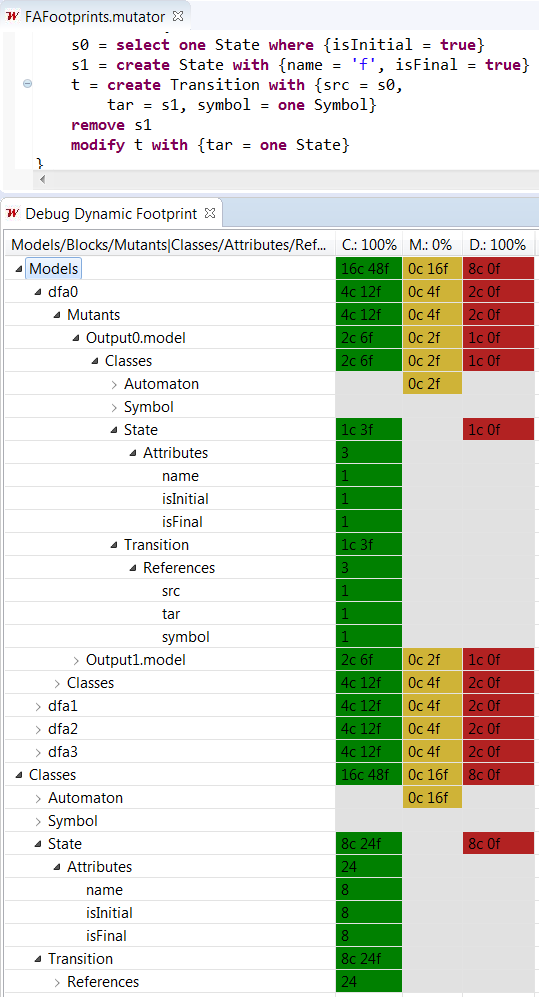

Net dynamic footprint view Debug dynamic footprint view

Dynamic footprints. Left: net dynamic footprint, showing the net operations with an effect on the generated mutants. Right: debug dynamic footprint, enumerating the applied operators in detail.

Architecture overview

Wodel is implemented as a modular suite of Eclipse plug-ins that integrates the complete mutation workflow into the EMF-based modelling environment. Its design separates the language definition, the mutation engine, the validation and comparison services, the analysis facilities, and the extension mechanisms, enabling extensibility and flexible integration with different modelling domains and applications.

The Wodel language is defined with Xtext, which provides the editor services of the IDE — syntax highlighting, code completion, and validation — together with the wizards for project creation and seed model synthesis, the footprint views, and the preferences pages contributed to the Eclipse workbench.

At the core of the architecture lies the Wodel engine. Wodel programs are compiled into Java code, which is executed to apply the mutation primitives following the specified block schedule. A validation subsystem checks that every mutant conforms to the domain meta-model and satisfies its integrity and OCL constraints, while a comparison subsystem detects and discards duplicate mutants. Mutant equivalence is determined syntactically by default, although dedicated extension points allow plugging in semantic comparison criteria for particular domains.

The engine records every applied mutation and the affected model objects in a mutation registry. This registry feeds the static and dynamic footprints and the mutation metrics offered by the IDE, and supports the traceability of the generated mutants. A seed model synthesiser completes the core services, automatically generating seed models that support the testing of the mutation operators.

Finally, Wodel provides extension points for post-processing applications that consume the generated mutants. Three post-processors are currently available: Wodel-EDU, for the automated generation and evaluation of diagram-based exercises; Wodel-Test, for the generation of mutation-testing tools for modelling and programming languages; and Wodel4diac, for the mutation of IEC 61499 industrial automation applications.

Wodel architecture overview

High-level architecture of Wodel. The framework integrates with Eclipse through the Xtext-based editor, wizards, footprint views, and preferences pages. The engine compiles Wodel programs into Java, generates valid mutants over EMF models, and records the applied mutations in a registry, while extension points connect the framework with the Wodel-EDU, Wodel-Test, and Wodel4diac post-processors.

Wodel usage

The blocks directive specifies when mutants are generated during the execution of a Wodel program.

A block can mutate models produced by an earlier block rather than the original seed models.

You can also define OCL constraints that every generated mutant must satisfy:

generate mutants
in "data/out/"
from "data/model/exercise1.model"
metamodel "http://dfaAutomaton/1.0"

with blocks {
    first {
         modify target tar from one Transition to other State [3]
    } [2]
    second from first repeat=no {
         modify one State with { name = random-string(4,6)}
    } [3]
}
constraints {
    context State connected: "isInitial or Set{self}->
            closure(s | Transition.allInstances()->
            select(t | t.tar=s)->collect(src))->exists(s | s.isInitial)"
}

Video demos

The following short video introduces the Wodel framework:

The following video demonstrates mutation-operator footprints in Wodel:

The following video demonstrates seed-model synthesis in Wodel:

Authors and contributors

The MISO research group started the Wodel research project in September 2013. Víctor López Rivero was its main developer during the initial phase. Since March 2015, Pablo Gómez-Abajo has developed the project under the supervision of Esther Guerra and Juan de Lara. During his doctoral studies, Mercedes G. Merayo also supervised his work.

We gratefully acknowledge the developers of the following frameworks used to build Wodel:
